Specification:

GradeQ235A/B/C, Q275B/C/D, Q195A/B, Q345A/B, A36, A283 etc
Thickness0.3mm-150mm
Width1000mm, 1250mm, 1500mm, 1800mm or customized
Rolling ProcessCold Rolled, Hot Rolled
StandardASTM, GB, JIS, AISI, EN
CertificationsISO 9001, SGS, BV

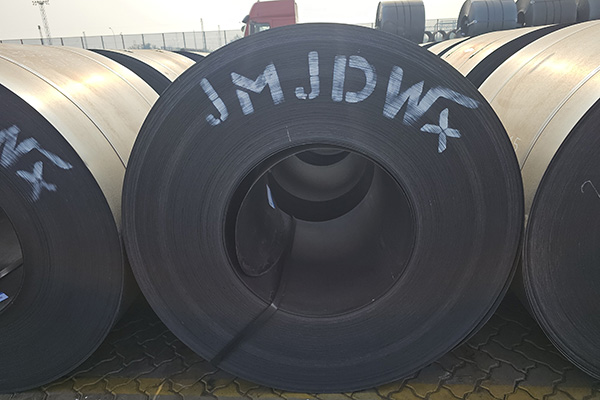

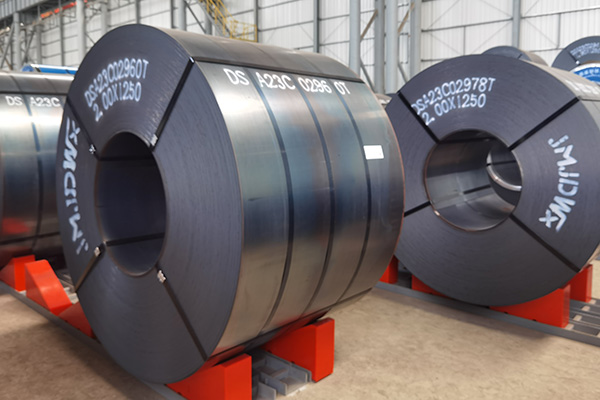

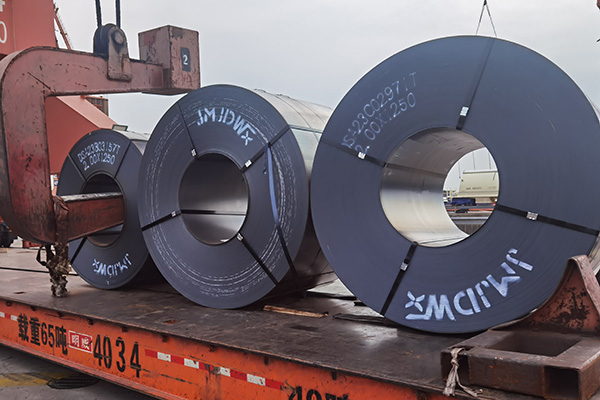

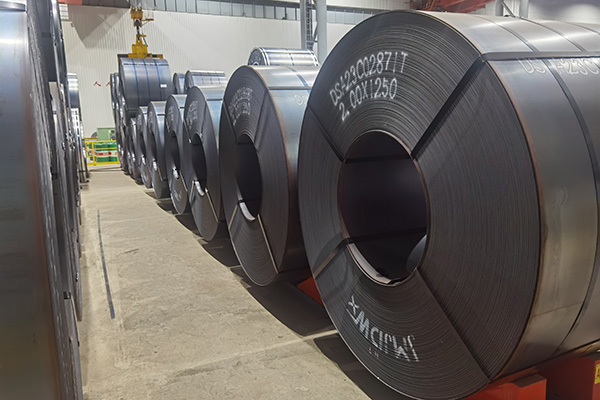

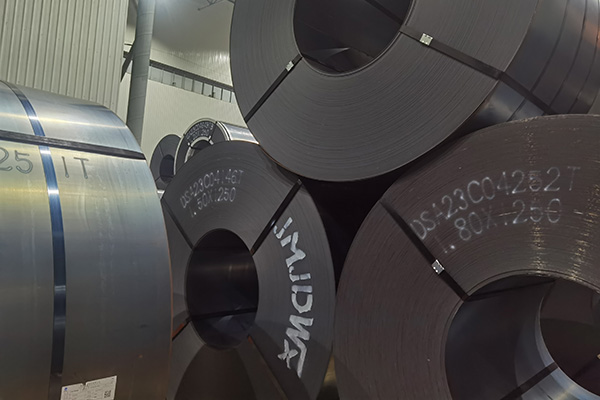

Carbon steel coil is a roll product made of carbon steel material, which is widely used in many industries such as construction, automobile manufacturing, mechanical processing, home appliances, ships, oil and gas, etc. Similar to carbon steel plates, carbon steel coils have good strength, toughness and processability, but are provided in roll form for easy large-scale production and transportation. Carbon steel coils are usually produced by rolling process, with a certain thickness, width and roll diameter, and have high production efficiency and economy.


Material and alloy classification

The material of carbon steel coils is usually composed of iron and carbon alloys. According to the carbon content, carbon steel can be divided into the following categories:

Low carbon steel (mild steel): The carbon content is usually less than 0.3%, with good ductility, weldability and processability, and is often used in construction, home appliances and other fields.

Medium carbon steel: The carbon content is usually between 0.3% and 0.6%, with good strength and plasticity, and is widely used in machinery, automotive parts and structural parts.

High carbon steel: The carbon content is usually higher than 0.6%, with higher hardness and wear resistance, and is often used to manufacture tools, springs and knives, etc.


Specifications of carbon steel coils

The specifications of carbon steel coils usually include thickness, width, inner diameter and outer diameter. Common specifications are:

Thickness: The thickness of carbon steel coils usually ranges from 0.2mm to 6mm, which can be customized according to customer needs.

Width: Common widths are 600mm, 1000mm, 1250mm, 1500mm, etc. Different widths are suitable for different industrial needs.

Inner diameter: The inner diameter of carbon steel coils is usually 508mm or 610mm, which is suitable for the storage and transportation of coils.

Outer diameter: The outer diameter of carbon steel coils generally ranges from 600mm to 1500mm, which varies according to the thickness and specifications of the coils.


Application areas of carbon steel coils

Carbon steel coils are widely used in many industries due to their excellent processability and low production costs:

Construction industry: used to manufacture steel structures, steel beams, steel columns, roofs, etc., especially for large-scale construction projects.

Automotive industry: used to manufacture car bodies, chassis, doors, auto parts, etc. Carbon steel coils have good ductility and can be deep stamped.

Home appliance industry: used to manufacture the outer shell and internal parts of home appliances such as refrigerators, washing machines, air conditioners, etc., because they are easy to process and have low costs.

Machinery manufacturing: Carbon steel coils are widely used in the manufacture of mechanical parts, equipment housings, tool racks, etc.

Oil and gas industry: used to manufacture pressure vessels, storage tanks, pipelines and other equipment, low carbon steel coils are often used for conveying pipelines and other load-bearing structures.

Shipbuilding: Carbon steel coils are widely used in the manufacture of hull structures and ship parts.

Transportation: used to produce railway carriages, vehicle chassis, shelves, etc., especially in applications requiring strong load-bearing capacity, carbon steel coils perform very well.
